Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

Thermal stable epoxy resin compound

Low water absorption HB epoxy

Electrical insulation curing epoxy resin

Lugar de origen:

Shanghai, China

Nombre de la marca:

WENYOU

Número de modelo:

9219K

Éntrenos en contacto con
Pida una cita
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation
Detalles del producto
CAS No.:
11070-4-3
Clasificación:
Adhesivos de Dos Componentes
Einecs No.:
216-823-5
Materia prima:
EPOXI
MF:
C21H24O4
Otros nombres:
Compuesto para la preparación de macetas de resina epoxi
Tipo:
Compuesto de resina epoxi
Uso:
Aislamiento eléctrico
Palabras clave:
endurecedor de epoxy de curado rápido
Nombre del producto:
Pegamento Epoxi AB para transformadores
Material:
Resin+hardener de epoxy
Aplicación:
interior usado
El tiempo de entrega:
Dentro de los 7 días
Embalaje:
20 KG o 200 KG o 1200 KG
certificado:
ISO14001 19001:2015ISO45001
Ventaja:
Alcanzar
Componente:
Componentes dobles: Epoxi+ Endurecedor
Relación de mezcla:
A:B=1:1
Pago y términos de envío
Cantidad de orden mínima
1000
Precio
$3.05-3.10
Productos relacionados
Buen precio High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation en línea

High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation

Consiga el mejor precio
Buen precio Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation en línea

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

Consiga el mejor precio
Buen precio Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers en línea

Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers

Consiga el mejor precio
Buen precio Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation en línea

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Consiga el mejor precio
Éntrenos en contacto con
0086 18916511816
hope.lu@sh-wysy.com
86-21-64308192
Contacto ahora
Descripción de producto
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02
Detail images

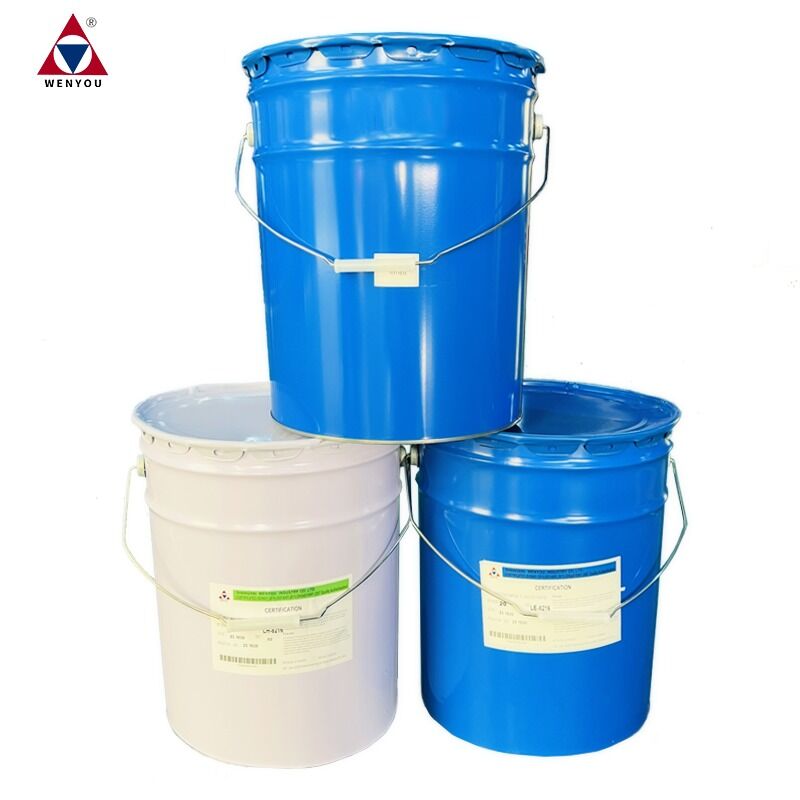

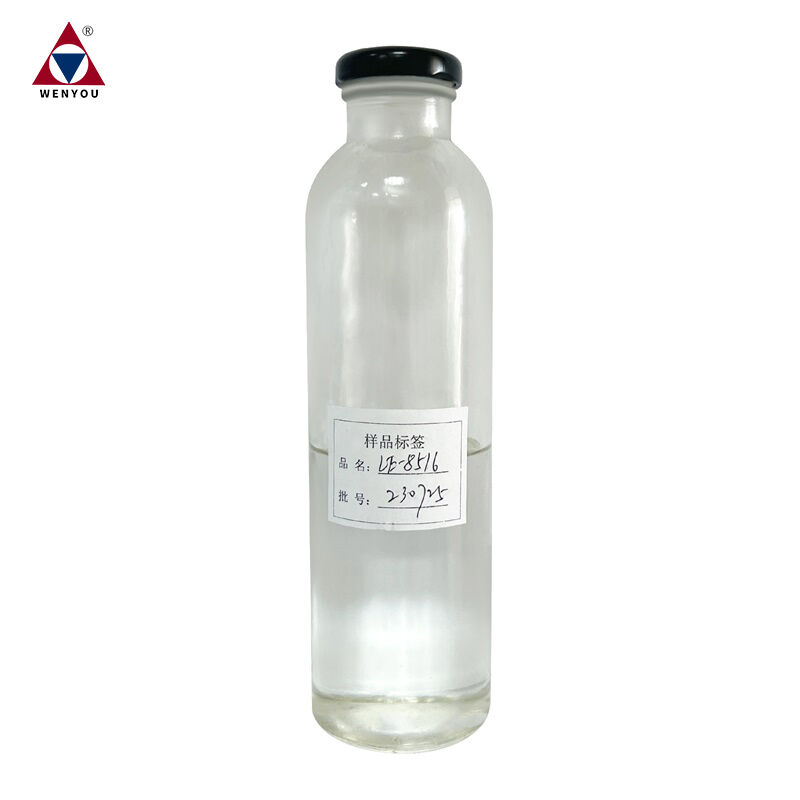

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 0
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 2
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 4
Product Show
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 6
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 8
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 10
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 12

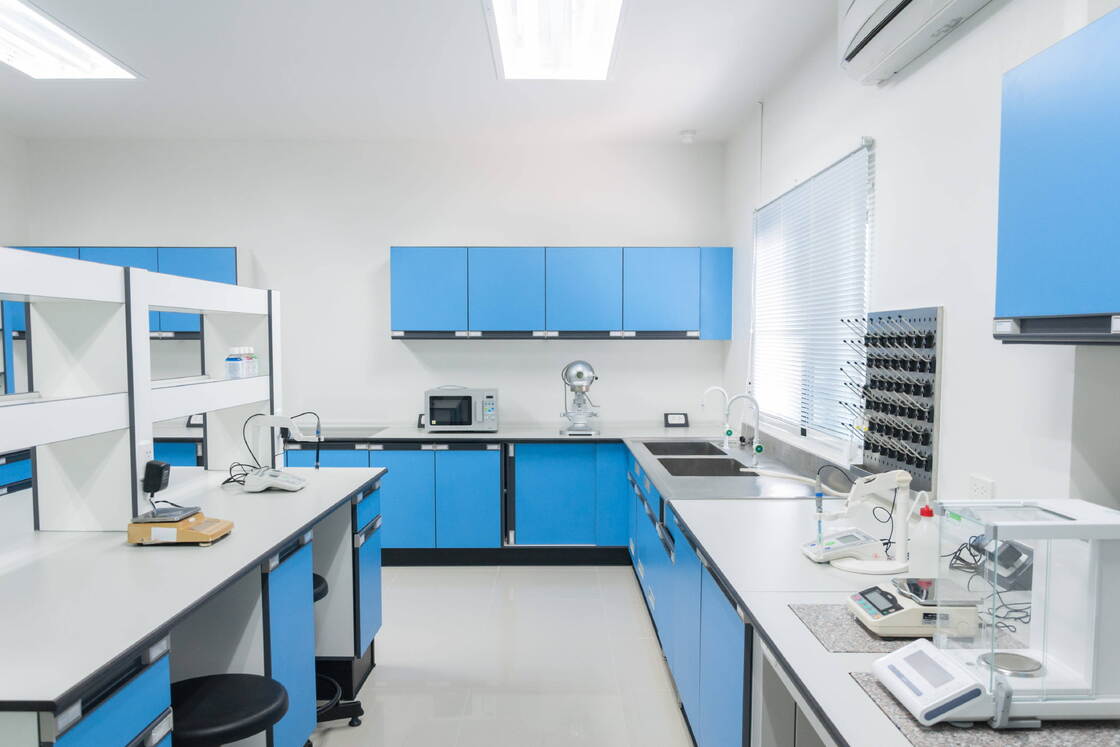

Work shop
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 14
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 16
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 18
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 20

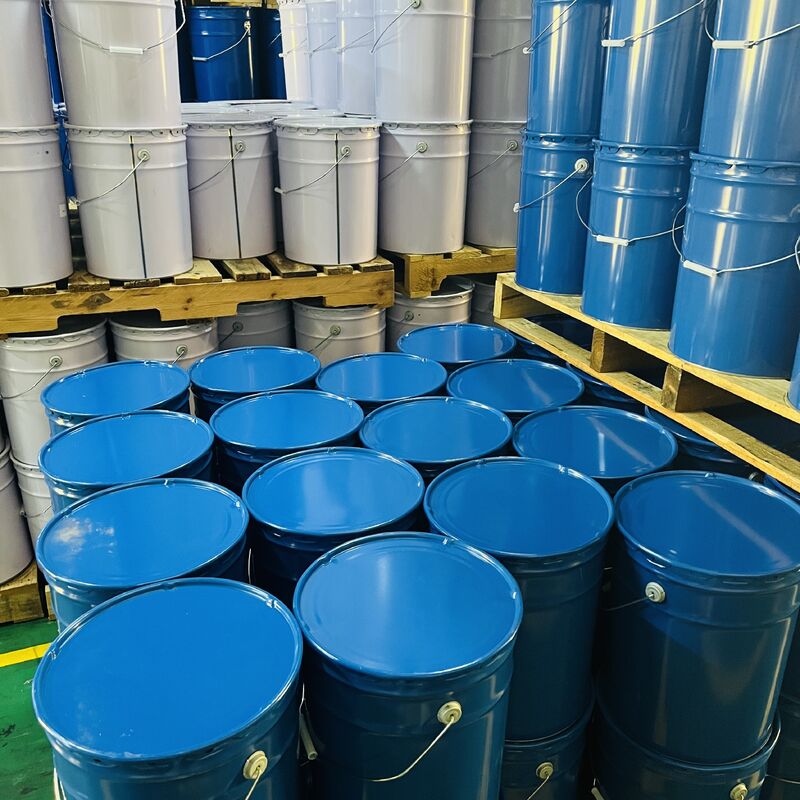

Our factory
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 22
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 24
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 26
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 28
Packing & Delivery
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 30
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 32
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 34
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 36
Exhibition
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 38
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 40
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 42
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 44
Company profiles
Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 46
Our company
We are specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers.  Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.
