Name: High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9218F
Price: 2.6 USD
Availability: InStock

Hogar > productos > Resina epoxi eléctrica >

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Lugar de origen:

PORCELANA

Nombre de la marca:

Wenyou

Certificación:

UL/SGS/REACH/RoHS

Número de modelo:

9218F

Documento:

Wenyou catalogue-2024.pdf

Éntrenos en contacto con

Pida una cita

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Detalles del producto

Aplicar:

transformador de alto voltaje

Flexibilidad:

Alto

Refracción de curado:

00,8-1,0%

Solicitud:

Aislamiento eléctrico

Uso:

aislamiento eletric

Temperatura de transición de vidrio:

100-120°C

Pago y términos de envío

Cantidad de orden mínima

240 kg

Precio

$2.6

Detalles de empaquetado

20kg/220kg

Tiempo de entrega

dentro de los 10 días

Condiciones de pago

L/C, T/T

Capacidad de la fuente

200ton/mes

Productos relacionados

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Consiga el mejor precio

Resina epoxi eléctrica 9218 de alta resistencia al impacto 10-18kJ/m², bajo factor de pérdida

Consiga el mejor precio

El video

Flame Retardant Epoxy Resin Potting Compound with 10-35kV Electrical Insulation and Modified Saturated Epoxy Resin

Consiga el mejor precio

Electrical Insulation Epoxy Resin and Liquid Mold Electrical Insulation Epoxy Resin for Medium&high Voltage Transformer

Consiga el mejor precio

Éntrenos en contacto con

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contacto ahora

Descripción de producto

WENYOU 9218 Electrical Epoxy Resin

Premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages

High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
Flame Retardant: HB flammability rating (4mm thickness) enhances safety
Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications

Property	Test Standard	Value Range
Compressive Strength	ISO604	150-200 N/mm²
Flexural Strength	ISO178	110-140 N/mm²
Tensile Strength	ISO527	60-85 N/mm²
Epoxy Value	ISO3001	4.4-4.9
Density at 25°C	ISO1675	1.16-1.2 g/cm³
Dielectric Strength	-	20-30 kV/mm
Cure Temperature	-	130-140°C
Viscosity at 25°C	ISO12058	5.5-8.5 MPa*s

Applications

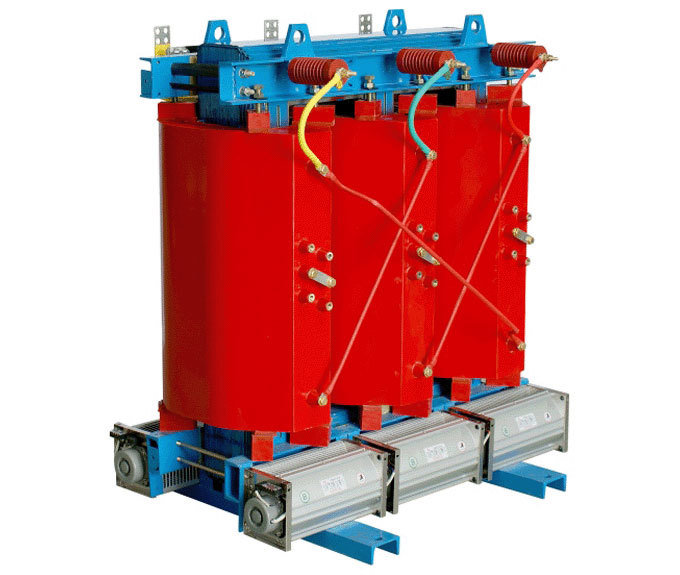

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

Frequently Asked Questions

Q: What certifications does this resin hold?

A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?

A: Guaranteed dispatch within 10 business days.

Q: Is customization available?

A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?

A: L/C and T/T transactions.
